ULTRADEX®型回转分度台
ULTRADEX®型是非常高精度的回转分度台,主要用计量检测校准、位置分度和其他实验台架上。360°、720°、1440°位置度是标准型号。对于一些特殊应用，几乎任何分度值都适用。
标准载荷型
这实际上就是Ultradex MK IV 由附件支架拖住分度盘,变成垂直状(水平旋转轴)。它允许的最大载荷为50ft/lbs(8")、100ft/lbs(12")、225ft/lbs(16")、300ft/lbs(24")、600ft/lbs(36")。
详细技术参数
| ULTRADEX MK IV STANDARD DUTY 90 DEGREE MOUNTING DIMENSIONAL INFORMATION |
| Table |
8" |
12" |
16" |
24" |
36" |
| A |
8.92" [226.57] |
13.00" [330.20] |
17.25" [438.15] |
26.00" [660.40] |
38.00" [965.20] |
| B |
5.25" [133.35] |
7.88" [200.15] |
10.00" [254.00] |
15.00" [381.00] |
22.00" [558.80] |
| C |
6.50" [165.10] |
9.94" [252.47] |
13.00" [330.20] |
18.75" [476.25] |
29.00" [736.60] |
| D |
6.82" [173.23] |
10.50" [266.70] |
13.88" [352.55] |
21.00" [533.40] |
33.00" [838.20] |
| E |
4.46" [113.28] |
6.50" [165.10] |
8.63" [219.10] |
13.00" [330.20] |
19.00" [482.60] |
| F |
3.000" [76.200] |
4.000" [101.600] |
5.500" [139.700] |
8.00" [203.20] |
15.000" [381.00] |
| G |
.34" [8.63] |
.56" [14.22] |
.56" [14.22] |
.56" [14.22] |
1.06" [26.92] |
| H |
.375" [9.525] |
.500 [12.700] |
.625" [15.875] |
.750" [19.05] |
1.000" [25.40] |
| RECOMMENDED LOAD LIMITS (FT/LBS) [N/m] |
|
8" |
12" |
16" |
24" |
36" |
| Horizontal Axis |
50 [729.5] |
100 [1,459] |
225 [3,282.7] |
300 [4,377] |
600 [8,754] |

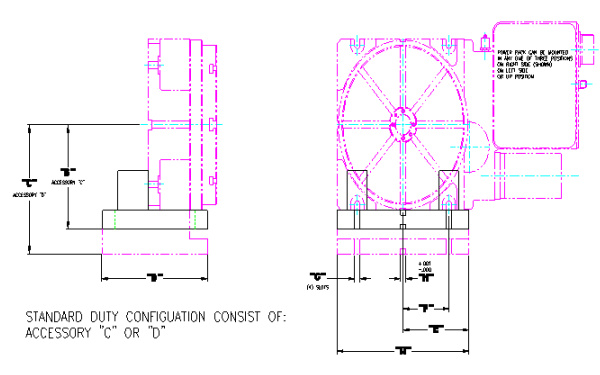

图纸
中等载荷型
由附件支架拖住分度盘，并且延长旋转轴轴承。最大承载分别：75ft/lbs(8")、125ft/lbs(12")、250ft/lbs(16")、325ft/lbs(24")、650ft/lbs(36")。
详细技术参数
| ULTRADEX MK IV MEDIUM DUTY 90 DEGREE MOUNTING DIMENSIONAL INFORMATION |
| Table |
8" |
12" |
16" |
24" |
36" |
| A |
8.92" [226.57] |
13.00" [330.20] |
17.25" [438.15] |
26.00" [660.40] |
38.00" [965.20] |
| B |
5.25" [133.35] |
7.88" [200.15] |
10.00" [254.00] |
15.00" [381.00] |
22.00" [558.80] |
| C |
6.50" [165.10] |
9.94" [252.47] |
13.00" [330.20] |
18.75" [476.25] |
29.00" [736.60] |
| D |
6.82" [173.23] |
10.50" [266.70] |
13.88" [352.55] |
21.00" [533.40] |
33.00" [838.20] |
| E |
4.46" [113.28] |
6.50" [165.10] |
8.63" [219.10] |
13.00" [330.20] |
19.00" [482.60] |
| F |
3.000" [76.200] |
4.000" [101.600] |
5.500" [139.700] |
8.00" [203.20] |
15.000" [381.00] |
| G |
.34" [8.63] |
.56" [14.22] |
.56" [14.22] |
.56" [14.22] |
1.06" [26.92] |
| H |
.375" [9.525] |
.500 [12.700] |
.625" [15.875] |
.750" [19.05] |
1.000" [25.40] |
| RECOMMENDED LOAD LIMITS (FT/LBS) [N/m] |
|
8" |
12" |
16" |
24" |
36" |
| Horizontal Axis |
75 [1,094] |
125 [1,823] |
250 [3,647] |
325 [4,741] |
650 [9,483] |
重载型
由附件支架拖住分度盘,延长旋转轴承并且使用铸铁支撑块共同完成的结构。它的最大承载力分别为:175ft/lbs(12")、325ft/lbs(16")、550ft/lbs(24")、1000ft/lbs(36")。
详细技术参数
| ULTRADEX MK IV HEAVY DUTY 90 DEGREE MOUNTING DIMENSIONAL INFORMATION |
| Table |
8" |
12" |
16" |
24" |
36" |
| A |
8.92" [226.57] |
13.00" [330.20] |
17.25" [438.15] |
26.00" [660.40] |
38.00" [965.20] |
| B |
5.25" [133.35] |
7.88" [200.15] |
10.00" [254.00] |
15.00" [381.00] |
22.00" [558.80] |
| C |
6.50" [165.10] |
9.94" [252.47] |
13.00" [330.20] |
18.75" [476.25] |
29.00" [736.60] |
| D |
6.82" [173.23] |
10.50" [266.70] |
13.88" [352.55] |
21.00" [533.40] |
33.00" [838.20] |
| E |
4.46" [113.28] |
6.50" [165.10] |
8.63" [219.10] |
13.00" [330.20] |
19.00" [482.60] |
| F |
3.000" [76.200] |
4.000" [101.600] |
5.500" [139.700] |
8.00" [203.20] |
15.000" [381.00] |
| G |
.34" [8.63] |
.56" [14.22] |
.56" [14.22] |
.56" [14.22] |
1.06" [26.92] |
| H |
.375" [9.525] |
.500 [12.700] |
.625" [15.875] |
.750" [19.05] |
1.000" [25.40] |
| K |
9.69" [246.12] |
14.32" [363.72] |
18.62" [472.94] |
28.00" [711.20] |
41.00" [1,041.4] |
| L |
10.94" [277.87] |
16.44" [417.57] |
21.62" [549.14] |
31.75" [806.45] |
48.00" 1,219.2] |
| RECOMMENDED LOAD LIMITS (FT/LBS) [N/m] |
|
8" |
12" |
16" |
24" |
36" |
| Horizontal Axis |
100 [1,459] |
175 [2,553] |
325 [4,709] |
550 [8,024] |
1,000 [14,590] |
