ULTRARON®型是精密机械型回转工作台，主要用于检验、工具室和机械加工。这类转台的精度可由研磨滚珠的精度和整体研磨座圈精度来确定。24英寸直径标准转台径向跳动为百万分之30（0.000030＂），轴向跳动为百万分之100（0.0001＂）。
这种回转工作台是由齿轮减速、皮带驱动的。它的精度与ULTRARON手动型的一样。可用来做适当的检测、研磨等.转速可调。当需要手动操作时,回转工作台可以从驱动单元上拆下来。

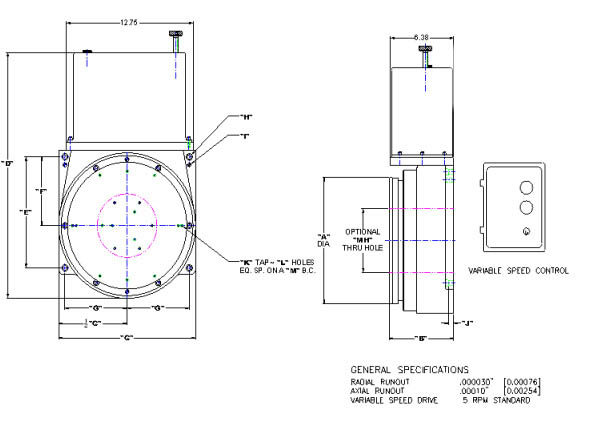

| 具体型号参数表 | ||||||||||||||
| 型号 | A | B | C | D | E | F | G | H | I | MH | J | K | L | M |
| UR9-00003 | 9" [228.6] |
6.50" [165.1] |
12.25" [131.15] |
19.75" [501.56] |
8.750" [222.25] |
4.687" [119.06] |
5.500" [139.70] |
3/8 SOC. HD. CAP SCR. | 3/8 P.F. DOWEL | 4" [101.6] |
.38" [9.65] |
1/4 - 20 | 3 6 6 |
3" [76.20] 5" [127.00] 8" [203.20] |
| UR12-00003 | 12" [304.8] |
6.50" [165.1] |
13.75" [349.25] |
23.12" [587.25] |
10.500" [266.70] |
6.250" [158.75] |
6.250" [158.75] |
3/8 SOC. HD. CAP SCR. | 3/8 P.F. DOWEL | 6" [152.4] |
.50" [12.7] |
1/4 - 20 | 3 6 6 4 |
3" [76.20] 5" [127.00] 11" [179.40] 10.25" [260.35] |
| UR18-00003 | 18" [457.2] |
7.25" [184.15] |
20.25" [514.35] |
29.38" [746.13] |
15.875" [403.23] |
9.812" [249.24] |
9.437" [239.71] |
3/8 SOC. HD. CAP SCR. | 3/8 P.F. DOWEL | 10" [254.0] |
.50" [12.7] |
5/16 - 18 | 3 6 4 8 |
5" [127.0] 10.75" [273.05] 15" [381.0] 16.5" [419.1] |
| UR24-00003 | 24" [609.6] |
8.25" [209.55] |
27.25" [692.15] |
37.00" [939.80] |
21.000" [533.40] |
12.875" [327.03] |
12.375" [314.33] |
1/2 SOC. HD. CAP SCR. | 1/2 P.F. DOWEL | 13" [330.2] |
.50" [12.7] |
5/16 - 18 | 3 6 8 4 12 |
5" [127.0] 10.75" [273.05] 16.5" [419.1] 16.875" [428.62] 22.25"[565.15] |
